Induction Heaters

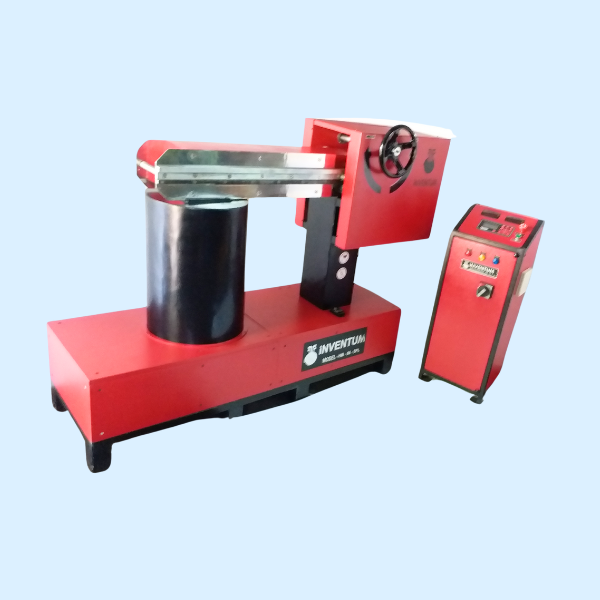

HIB-06 (80 / 100 KVA UNIT)
Induction Heater of 80 / 100 kVA capacity specially designed to suit the application of heating very heavy and large sized bearings and other shrink-fit components, to the desired temperature precisely, quickly and safely.
Models
(Standard + Customized)
(Standard + Customized)
0
+
Products
0
+
TECHNICAL SPECIFICATIONS
|
Product Data |
Model HIB-06 |
|
Heater Body |
Base structure of steel and main heater coil hermetically sealed with fiber glass |
|
Capacity |
80 / 100 KVA |
|
Voltage |
415/ 440 V 50 Hz |
|
Current (max) |
100 Amps |
|
Heater Body |
Steel |
|
Start Condition |
Soft Start |
|
Pole Section (mm) |
200 x 200mm |
|
Standard Yoke size (mm) |
200 x200 x1350mm |
|
Max. bearing weight (+/-)* |
3000 kg |
|
Max. work piece weight (+/-)* |
2500 Kg |
|
Max. recommended bearing outside diameter |
2000mm |
|
Max. bearing width |
700mm |
|
Temperature control |
Using microprocessor/ microcontroller based electronic circuits. Note: Bearings to be heated up to a maximum temperature of 120°C. Other components can be heated up to higher temperatures |
|
Temperature range |
Upto 250° C. Adjustable in steps of 1° C. Accuracy +/- 5° C |
|
Coil Diameter |
400mm |
| Max. temperature |
2500C |
|
Magnetic probe |
Yes |
| Digital display |
Yes. LCD/ LED digital display. |
|
Time control |
Microcontroller based electronic circuits. |
| Time Period |
0 to 99.9 min. Adjustable in steps of 0.1 minutes. |
|
Digital display |
Yes. LCD/ LED digital display. |
| Sound signal |
Yes |
| Fault Condition (error) Report |
Yes |
|
Temperature Hold |
Yes |
| Demagnetisation |
Yes. Automatic |
|
Residual Magnetism |
< 2 A/cm |
| Power Level selection |
Variable in 2/ 4 steps |
|
Thermal cut-out (safety guard) |
Yes |
|
Space between supports ** (w x h) |
750 x 750mm ** Other dimension range is available on specific request. |
|
Overall Dimension (w x d x h) |
1600mm X 3000mm x1400mm mm(+/- 5%) |
| Heater’s Standard Accessories | ||
| 1 | Robust Heater Body made of steel | 1 No. |
| 2 | LCD/LED Display Box connected to the main body | 1 No. |
| 3 | Standard Yoke of size 200 x 200 (240*) x 1350mm with special
sliding arm arrangement * with rack |
1 No. |
| 4 | Magnetic type Temperature probe with cable & socket | 1 No. |
| 5 | Special Hand Gloves (heat resistant type) | 1 Pair |
| 6 | Handheld Digital Thermometer (0-500° C) with probe (DT-01) | 1 No. |
| 7 | Spare Magnetic Temperature probe with cable & socket. | 1 No. |
| * Depending upon bearing geometry, configuration, max. temperature
and ambient temperature. |
||
| Product Data | Model HIB-01-SPL |
|---|---|
| Power | 3.5 - 4 KVA |
| Voltage | 1Ø x 230 VAC |
| Nominal Current | 15 A |
| Working Frequency | 50/60 Hz |
| Residual Magnetism | < 2 A/cm |
| Power Level | High 100 % Low 50 % |
| Temperature Control | 60° C to 120° C using solid state circuit |
| Time Control | 0.5 to 6.0 min continuous |
| Minimum (ID)mm | 29mm (with standard horizontal yoke) |
| Sound Signal | Yes |
| Reheat Signal | No |
| Error Signal | No |
| Coil Over Heating Protection | Yes |
| Temperature Hold Function | No |
| Space between vertical supports (W x H) | 100 x 100 mm ( ± 10mm) |
| Overall Dimensions (W x D x H) | 320 x 265 x 240mm (± 10mm) |
Areas of Application
Chemical industry
Steel industry
Paper industry
Gearbox manufacturers
Machine construction
Transport sector
Railway sector
MRO/OEM sector
