Mini-Ductor

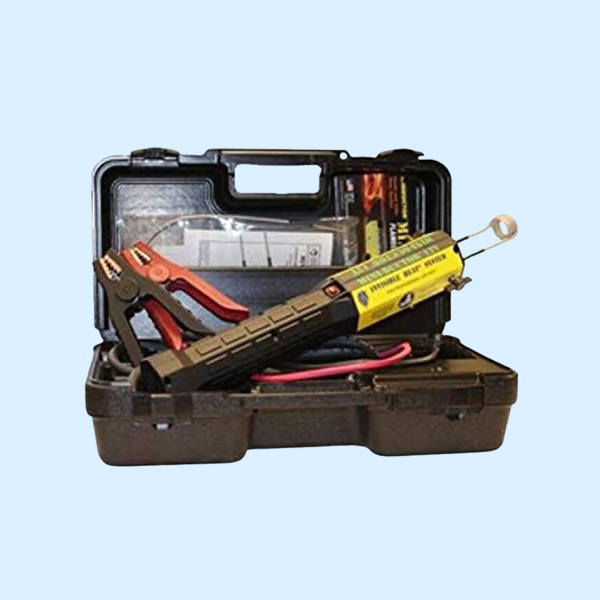

MINI-DUCTOR 500
A Flameless Handheld Induction Tool To Remove Rusted, Seized Or Stripped Nuts, Bolts, Bearings, Gears, Pins And More !
Mini ductor 500 Uses High Frequency Magnetic Fields for heating ferrous and some non-ferrous metals without the danger of an open flame. Faster and Safer than torches; heat more precisely without damage to nearby plastics and rubber. Turn a ¾” nut red hot in seconds. Mini ductor induction heater tools manufacturers in Mumbai, India to all over the world for sale inductor industry from last 3 decades with multiple industrial features as per the client's requirements.
Models
(Standard + Customized)
(Standard + Customized)
0
+
Products
0
+
TECHNICAL SPECIFICATIONS
FEATURES :-
- Easy Maintenance And Low Costs
- Optimum Protection For The Users
- Lightweight, Ergonomic, Portable
- Alarm Overload
ADVANTAGES :-
- Reduce Fire Hazards And Damages Commonly Associated With Oxyacetylene Torches.
- High Reliability (No Combustible Gases) And Better Working Conditions For The Operation.
- Lower Costs Associated With Training Staff.
- High Energy Efficiency.
|
Product Data |
Mini – Ductor 500 12V DC |
|
Housing |
Military Grade Impact Resistant Plastic |
|
Power |
840 Watt |
| Voltage |
12 V DC |
|
LED Usage Indicator |
Yes |
| Fan Operation Enhancement |
Yes |
|
Carry Case |
Yes |
| Overall Dimensions (W x D x H) |
482mm x 266mm x 127mm |
|
Weight |
2.2 kg |
| The Inductions Coils |
1) MD 99-601 : 22.2mm (7/8”) ID. heat resistant Pre-Formed coil (12.7cm L) |
|
2) MD 99-602 : Straight Heat resistant ‘U’- Form coil for DIY winding (58.4cm L) |
|
|
3) MD 99-610 : 25mm (1″) Heat resistant Pre formed Coil (L- 21cm) |
|
|
4) Carry Case |
|
|
Cooling Way |
Air cooling |
|
Optional Accessories |
|
|
Inductions Coils |
1) MD99-XBB96 : 96″ Long Bearing Buddy Coil |
|
2) MD99-624 : 38.1mm (1-1/2″) Long Pre-formed Coil (33.6cm L) |
|
|
3) MD99-625 : 44.5mm (1-3/4″) Long Pre-formed Coil (33.6cm L) |
|
|
4) MD 99-603 : Flexible heat resistant Bearing Buddy coil for inline application (104.1cm L) |
|
| 5) MD 99-605 : 22.2mm(7/8”) ID heat resistant Pre-Formed coil (25.4cm L) | |
| 6) MD 99-607 : 44.5mm (1-3/4″) Heat resistant Pre formed Coil (L- 22.2cm) | |
| 7) MD 99-608 : 38.1mm (1-1/2″) Heat resistant Pre formed Coil (L- 21.6cm) | |
| 8) MD 99-609 : 31.8mm (1-1/4″) Heat resistant Pre formed Coil (L- 21cm) | |
| 9) MD 99-611 : 19mm (3/4″) Heat resistant Pre formed Coil (L- 11.4cm) | |
| Product Data | Model HIB-01-SPL |
|---|---|
| Power | 3.5 - 4 KVA |
| Voltage | 1Ø x 230 VAC |
| Nominal Current | 15 A |
| Working Frequency | 50/60 Hz |
| Residual Magnetism | < 2 A/cm |
| Power Level | High 100 % Low 50 % |
| Temperature Control | 60° C to 120° C using solid state circuit |
| Time Control | 0.5 to 6.0 min continuous |
| Minimum (ID)mm | 29mm (with standard horizontal yoke) |
| Sound Signal | Yes |
| Reheat Signal | No |
| Error Signal | No |
| Coil Over Heating Protection | Yes |
| Temperature Hold Function | No |
| Space between vertical supports (W x H) | 100 x 100 mm ( ± 10mm) |
| Overall Dimensions (W x D x H) | 320 x 265 x 240mm (± 10mm) |
